PVC tarpaulin is one of the most widely used waterproof covering materials in construction, transportation and outdoor protection. This guide explains what PVC tarpaulin is, how PVC coated polyester fabric is manufactured, and why PVC vinyl tarps are known for durability, heat sealing performance and long outdoor service life.
PVC tarpaulin is a three-layer fabric made by coating or laminating polyester scrim with PVC resin to produce a waterproof, UV resistant, tear resistant and heavy duty protective material used for construction covers, transport tarps, tents, banners and industrial protection.

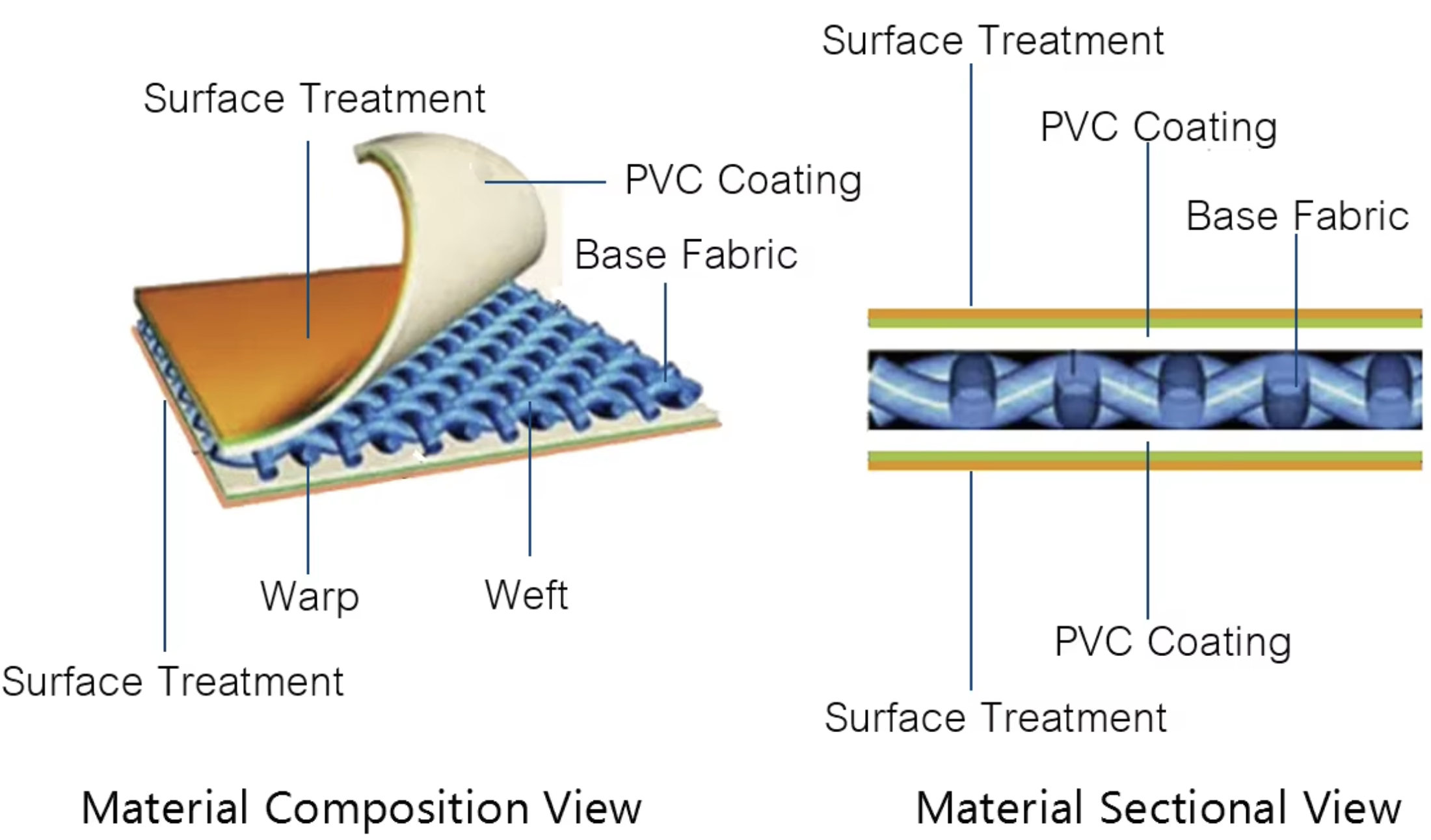

PVC tarpaulin is engineered as a three-ply composite fabric:
The middle layer is woven or warp-knitted polyester yarn that gives the fabric strength and dimensional stability.
Two technical indicators define performance:
| Parameter | Explanation |
|---|---|
| Denier | Weight and thickness of polyester yarn |
| Thread count (e.g., 9×9) | Threads per inch in warp × weft |
A higher denier and tighter weave directly improve tensile strength and tear strength.
The outer layers are made from PVC resin paste blended with chemical additives:
Vinyl thickness is measured in mil (1 mil = 1/1000 inch).
Tarpaulin weight is measured in oz/yd² or g/m².
A high quality PVC coated fabric is designed for demanding environments.
These characteristics make PVC tarpaulin a dependable heavy duty vinyl tarp for outdoor use.
Manufacturing method influences durability, flexibility and price.
Liquid PVC is applied directly to polyester fabric and leveled with a knife coating process.
Benefits:
Typical uses: truck covers, construction sites, long-term outdoor covers.
PVC film is partially melted and laminated to polyester fabric.
Benefits:
Typical uses: inflatable boats, air ducts, air structures.
Two PVC films laminated with knitted polyester fabric.
Benefits:
PVC tarpaulin can be produced with different embossing textures:
| Finish | Application |
|---|---|
| Matte | Printing and banners |
| Polish | Tents and outdoor covers |
| Taffeta | Medical mattress fabric |
Typical roll specifications:
PVC tarpaulin material is widely used across industries.
PVC tarpaulin has become the mainstream modern tarpaulin material for demanding environments.
Compared with canvas and PE tarps:
| Feature | PVC Tarpaulin | Traditional Tarps |
|---|---|---|
| Waterproof | Excellent | Moderate |
| Tear resistance | High | Lower |
| UV resistance | Strong | Limited |
| Anti mildew | Yes | Rare |
| Service life | Long | Shorter |
This explains the shift toward high quality PVC coated fabrics worldwide.
From construction sites to transport logistics and outdoor structures, PVC tarpaulin material offers a balance of strength, flexibility and weather resistance. Its combination of PVC coating technology and polyester reinforcement supports long-term, heavy duty protection in harsh environments.
Yes. The PVC coating creates a non-porous surface that prevents water penetration, making it suitable for long-term outdoor exposure.
PVC tarpaulin is thicker, stronger and more durable. It provides better tear strength, UV resistance and longer service life.
Yes. PVC fabric supports heat sealing, hot air welding and high-frequency welding for airtight and waterproof seams.
Standard products last around 3–5 years. PVDF coated materials can last up to 10–15 years outdoors.
Yes. It resists rain, snow, UV exposure and temperatures as low as −30°C.
Yes. Anti mildew and anti static treatments make it suitable for machinery covers and long-term storage protection.
PVC tarpaulin combines polyester strength with advanced PVC coating technology to produce a waterproof, UV resistant and tear resistant protective fabric. From transportation and industrial protection to tents and banners, it remains one of the most reliable materials for heavy duty covering and outdoor applications.
