Product Name: Ventilation Ducts
Product Specification: 1000*1000D/18*18, 1000*1000D/20*20, 1000*1000D/23*23, 2000*2000D/15*15, etc.
Weight (GSM): 400G, 500G, 610G, 800G, 1050G, 1200G, etc.
Product Features:
* Laminated tarpaulin has many excellent properties such as waterproof, anti-aging and good color fastness. Matte, glossy, taffeta and other surface effects are available.
* The polyvinyl chloride can be treated to have certain properties such as FR (NFPA701, B1/B2, M2, DIN75200, ASTM D1230), anti-mildew (ASTM G 21-13), anti-UV (ISO 4892-3:2016 & ISO105-A02:1993), cold resistance (ISO 17233:2002) and environmental protection (EN71-3, Reach, RoHS) to satisfy customers' special requests.

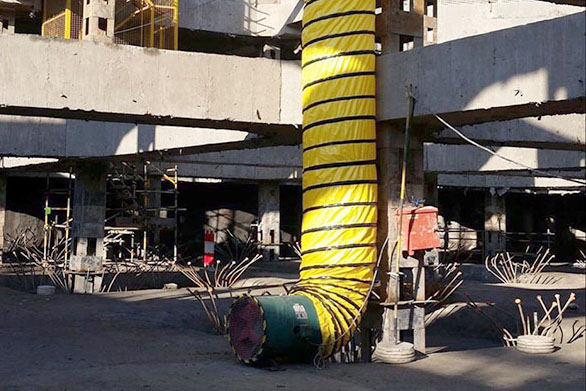

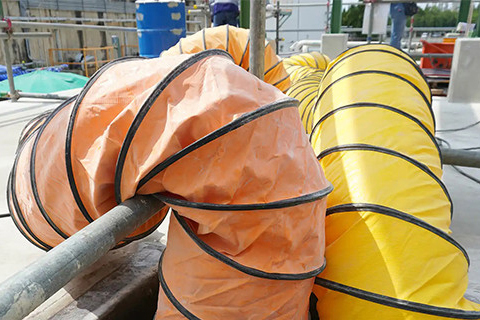

Application: Our products are widely used for ventilation ducts, industrial curtain walls, oil boom, etc.
| Properties | 1000*1000D 18*18 | 1000*1000D 20*20 | 1000*1000D 23*23 | 2000*2000D 15*15 | Test Method | |
| Weight (GSM) | 450-600 | 500-1000 | 500-1100 | 800-1200 | DIN53352 | |
| Tensile Strength (N/5CM) | L | 1900 | 2500 | 2600 | 4000 | DIN53354 |
| W | 1800 | 2200 | 2300 | 3500 | ||
| Tearing Strength (N/5CM) | L | 185 | 230 | 250 | 520 | DIN53363 |
| W | 180 | 210 | 220 | 450 | ||
| Adhesion (N) | 80 | 90 | 100 | 100 | DIN53357 | |
| Light Fastness (Except White) | 6--7 | |||||
| FR Certification (Optional) | B1/B2/M1/M2/NFPA-701/DIN75200 | |||||
| Environmental (Optional) | REACH/ROHS/EN71-3/ASTM-F963 | |||||
| Lacquering | 3555 (Acrylic)/3483 (Acrylic)/7584 (PVDF) | |||||
| Temperature Resistance | -30ºC--+70ºC | |||||
| Width (M) | UP TO 5.1M | |||||
| All our Technical Characteristics are Referential. | ||||||
